Product description:

Construction of the space is lesser, widely used for extracting workshop, the bottom slag door is equipped with heating, make medicinal herbs extract safer

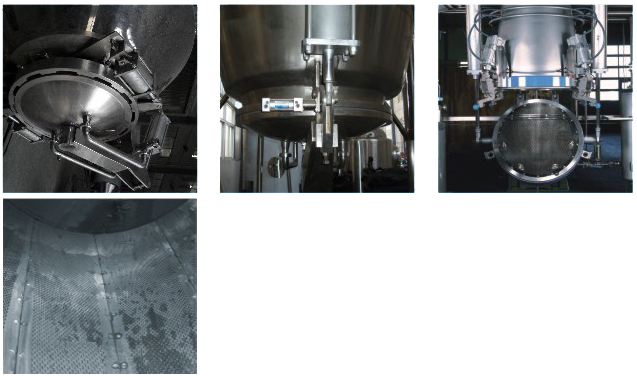

Rotary slag door

Automatic open and close the cover, can realize high temperature and high pressure extraction, swivel type can reach more than 3 bar. Provided extraction process with more choices. Also can adapt to some special technical requirements. Safe and reliable. Has sufficient security function, without leakage.

Quick open slag door

Can automatically began to close your tank cover. Adopted pneumatic cylinders. It increase insurance device. At the same time to prevent accidental operation, high safety factor. Suitable for small and medium-sized slag notch.

Large caliber slag door

Can automatic began to close your tank cover; Can realize temperature from high pressure to take. Provided extraction process with more choices, this slag door is suitable for big diameter conical extractor is way of slag. High safety factor:

Optional device extractor is a fluid system

1. extraction tank at the bottom of the filter plate adopts the two layers. One layer thickness 5-6 mm stainless steel support plate. There are 10 mm diameter hole. On the top of the support layer. A thin layer thickness of 0.60 mm do not iron plate with 0.5 above x10mm long hole, relatively speaking. Long holes are less likely to block 3

2. can according to customer's material needs. Filter cartridges in the extraction tank bravery. Can choose grain type filter. At the bottom of the filter cartridge filter area than area increased several times, solved the extraction at the bottom of the tank is easy, the difficulty of produced liquid.
