The characteristics of the multi-function extractor

Dynamic extraction tank is mainly used in traditional Chinese medicinal materials in water or organic solvent as medium under the mixing state of decoction extraction and heat reflux extraction process, etc. And in the process of extraction and recovery of volatile oil composition at the same time. Tank for extracting bulk herbs effective ingredients of high efficiency; To save energy, the effective ingredients extracted more fully extract with high concentration. Working principle: the extraction process of equipment is made within the closed circulating system, feasible atmospheric extraction, extraction, also can bring down both water extraction, alcohol extraction, oil extraction, or for other purposes, the specific technical requirements are traditional Chinese medicine factory to cut out according to the drug performance requirement.

The extracting tank properties

The editor

Extraction tank for traditional Chinese medicine factory, boil, process design of multi-purpose equipment, in this process can extract, alcohol recovery, separation of volatile oil. This equipment is in addition to the extractor is the main equipment, with spray precipitator, cooler, separator, etc. These devices where contact with the drug adopt the stainless steel, heating interlayer by pressure vessel inspection department strict inspection. This equipment is in the process of extraction through the condenser, oil-water separator and so on, completely sealed circulating system, at the same time in the residual organic solvent recovery.

Extracting principle:

(1) water: water and Chinese traditional medicine into the extracting tank, and began to sandwich heat source, reducing supply after the pot boiling heat source, to keep the pot boiling, maintain time according to extract the pharmacological process, such as airtight extraction for cooling water, make steam vapour is cooled to extraction tank, maintain circulation and temperature.

(2) such as alcohol, drugs and alcohol to join tank must be closed first, heat steam to interlining, opened the temperature of cooling water to the tank need to reduce the supply of heat, make up after the condenser into liquid alcohol vaporized alcohol reflux can, in order to improve the efficiency of available forced circulation pump, the liquid from the tank bottom, through the pumped out to the upper cylinder imported back to the tank, remove local channel flow.

(3) oil: containing volatile oil first joined extraction of traditional Chinese medicine and water tank, open the oil separator of circulating valve, adjust the by-pass backflow valve, open to supply heat source valve open when the evaporating temperature of cooling water for cooling, the cooling liquid within the separator should keep a certain height of separation of oil-water separator rotation use again.

(4) the recycling oil essence: adding alcohol in cylinder, open the cooling water to steam, and then open the recycle valve.

Product categories

The editor

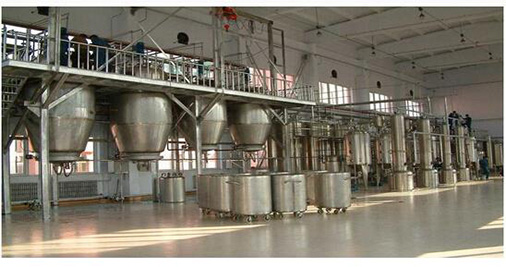

Extraction tank series: mushroom type extraction tank, oblique cone type extraction tank type, straight type extraction tank, straight cone extraction tank
