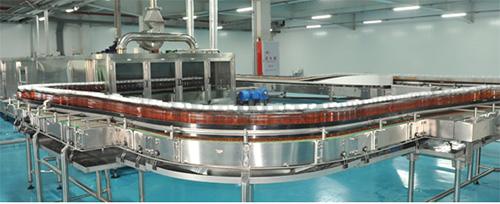

Spray Cooling Tunnel Pasteurizer, is specially designed for dairy products, juice, beverage, beer, food, medicine and other pasteurization after filling and packaging equipment, prolong the shelf life is the material through the sterilization, cooling the ideal equipment, especially the secondary sterilization equipment for automatic production line.

An overview of the

According to users of different products of different heating, sterilization, heat preservation, cooling process requirement, to design a different process, meet the technological requirements, configuration of the corresponding high precision automatic control system. Than the traditional hot water bath sterilization distribution more uniform, more penetrating, more quickly, greatly improving the production efficiency.

The working principle of

1. equipment rack full stainless steel, the overall structure is compact, and health appearance;

2. high quality plastic mesh belt chain plate, can work under high temperature for a long time, short-term high temperature of 104 degrees Celsius;

3. solid cone wide-angle spray nozzle, the flow distribution uniformly stable, constant temperature field;

4. the heat preservation technology, reducing energy consumption;

5. a variety of comprehensive utilization of heat energy recovery technology, energy saving, environmental protection;

6. temperature sensors, high precision measurement;

7. the combined process, reasonable process, can handle a variety of materials;

8. the sterilization temperature control, a variety of optional sterilization temperature display/record mode, (single/double pen recorder, paperless recorder), etc.;

9. variable frequency control, the total processing time can be adjusted according to the production process.

10. to the packaging for the round bottles, plastic bags, cartons, cans roof the discharged institutions, such as product configuration and automated conveyor line connection transition smoothly;

11. can provide heat distribution testing services for users, using expert system, online monitoring the temperature change in the process of production.

Application field

Suitable for all kinds of fresh milk, lactic acid bacteria, milk, calcium milk, yogurt, juice, beverage, health drinks, tea drinks, beer, and other food, medicines, filling and packaging after secondary sterilization.
