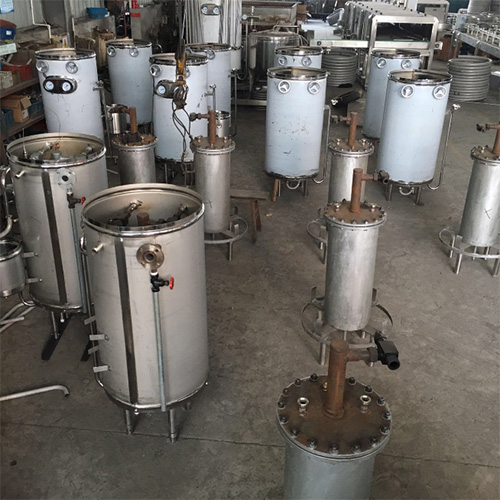

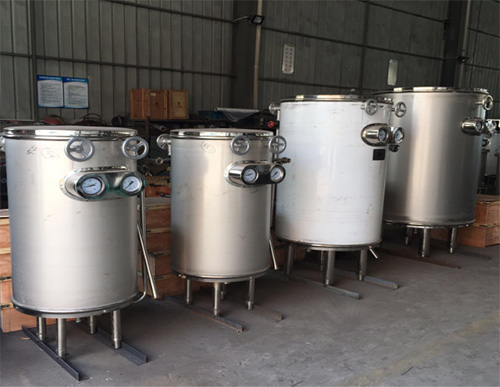

Ultra High Temperature Instantaneous Sterilization Machine

Ultra high temperature instantaneous sterilization machine is suitable for dairy products, medicine, fresh milk, juice, beverage, frozen sucker, drinks, soy milk, spices, and ice cream paste, soy sauce, soybean milk, condensed milk, alcohol instantaneous sterilization of liquid materials such as, both to kill bacteria, material and does not destroy the flavor and nutritional value, can also be used for sterilization of liquid materials.

Ultra high temperature instantaneous sterilization machine features:

1. continuous production, sterilization time very short.

2. shorter time for heating the due to high quality products can be obtained.

3. with ultra high temperature sterilization, the sterilization efficiency is very high.

4. with the centrifugal pump and high pressure homogenizer series use, application range is very wide, suitable for high viscosity material sterilization.

With cold and hot material is used on 5, due to the design of heat exchange equipment of waste heat utilization economic effect, so the steam consumption is small.

Ultra high temperature instantaneous sterilization machine specifications and main technical parameters:

Capacity: 1 ~ 6 t/h

Sterilization temperature: 115 ~ 137 ℃

Using steam pressure: < 0.78 MPa

High temperature sterilization time: 4 ~ 6 s

Discharging temperature: < 65 ℃ (or determined according to the technological requirements)

Feed temperature: 30 ℃ or higher

Our factory can be customized for the customer design: high pressure sterilization pot, sterilization machine, high temperature instantaneous sterilization machine,ZhiLengShi milk cans, high shear emulsifying pot, colloid mill, centrifugal pumps, filters, sealing machine, hot and cold, tilting cylinder type sandwich pot, CIP cleaning machine, mixing tank, reactor, heat exchanger, etc.
